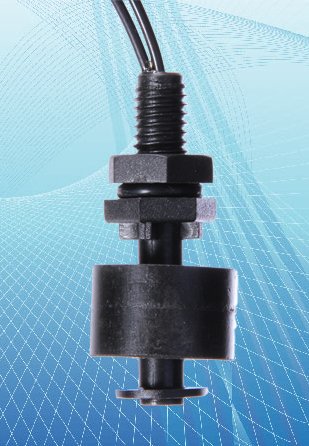

Plastic Vertical Float Switch (Small Housing)
| SPECIFICATIONS | |||
| PART NO. | MFS VT 01 SH | MFS VT 02 SH | |
| CONTACT FORM | NO/NC/CO | NO/NC/CO | |
| SWITCHING VOLTAGE | Max. V | 200 VDC Max. | 240VAC/DC |
| SWITCHING CURRENT | Max. A | 0.5A Max | 1A Max. |
| CARRY CURRENT | Max. A | 1A Max. | 2A Max. |
| SWITCHING CAPACITY | Max. VA | 10W/VA Max. | 50W/VA Max. |
| CONTACH RESISTANCE | Max. m | 150mOhms | 150mOhms |
| LEAD WIRE | 1.5mtr PVC, 0.5mm2 | 1.5mtr PVC, 0.5mm2 | |
| REVERSIBLE SWITCH ACTION | YES | YES | |
| OPERATING PRESSURE | Max. Kgcm2 | 1.0 | 1.0 |
| OPERATING TEMPERATURE | Deg °C | -20° + 80° | -20° + 80° |
| MATERIAL | BODY | Nylon 6, G.F. 15% | Nylon 6, G.F. 15% |
| FLOAT | Polyurethene | Polyurethene | |
| SUITABLE SPECIFIC GRAVITY | mm | 0.75 | 0.75 |
| MOUNTING HOLE DIA | 10.5 | 10.5 | |
| MOUNTING | VERTICAL | VERTICAL | |
Features
Lock Nut Mounting
Reversible Contact Function by Changing Float direction
Suitable for water, gasolin, oils etc.
Available Either Normally Open, Normally Close, Change Over Contact Form
Application
House hold Equipments such as heaters, humidifiers, overhead water tanks. Water purifiers, Coffee Machines, Medical equipments, food industry equipments.
