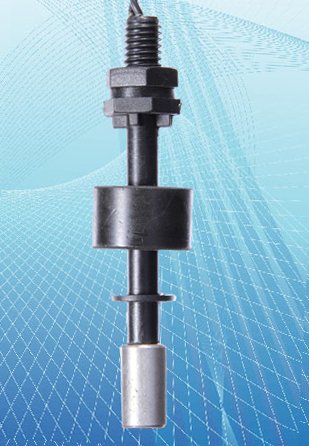

Plastic Vertical Float Switch (Standard Housing) Hanging Weight
| SPECIFICATIONS | |||
| PART NO. | MFS VT 01 WT | MFS VT 02 WT | |
| CONTACT FORM | NO/NC/CO | NO/NC/CO | |
| SWITCHING VOLTAGE | Max. V | 200 VDC Max. | 240VAC/DC |
| SWITCHING CURRENT | Max. A | 0.5A Max | 1A Max. |
| CARRY CURRENT | Max. A | 1A Max. | 2A Max. |
| SWITCHING CAPACITY | Max. VA | 10W/VA Max. | 50W/VA Max. |
| CONTACH RESISTANCE | Max. m | 150mOhms | 150mOhms |
| LEAD WIRE | 1.5mtr PVC, 0.5mm2 | 1.5mtr PVC, 0.5mm2 | |
| REVERSIBLE SWITCH ACTION | NO | NO | |
| OPERATING PRESSURE | Max. Kgcm2 | 1.0 | 1.0 |
| OPERATING TEMPERATURE | Deg °C | -20° + 80° | -20° + 80° |
| MATERIAL | BODY | Nylon 6, G.F. 15% | Nylon 6, G.F. 15% |
| FLOAT | Polyurethene | Polyurethene | |
| SUITABLE SPECIFIC GRAVITY | 0.75 | 0.75 | |
| MOUNTING HOLE DIA | mm | 10.5 | 10.5 |
| MOUNTING | VERTICAL | VERTICAL | |
Features
Lock Nut Mounting
Suitable for water, gasolin, oils etc.
Available either Normally Open, Normally Close, Change Over Contact Form
Application
Most suitable for Water controller application. House hold equipments such as heaters, huminitifiers, overhead water tower. Water purifiers, Coffee Machines medical equipments, food industry.
