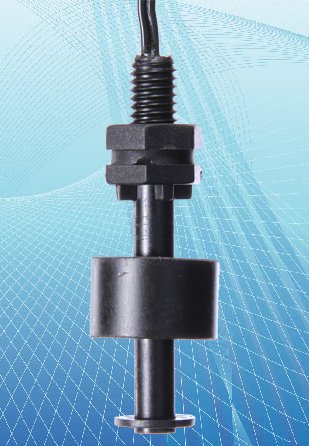

Plastic Vertical Float Switch (Standard Housing)

Plastic Vertical Float Switch (Standard Housing)

SPECIFICATIONS
PART NO.   MFS VT 01 MFS VT 02
CONTACT FORM   NO/NC/CO NO/NC/CO
SWITCHING VOLTAGE  Max. V 200 VDC Max. 240VAC/DC
SWITCHING CURRENT Max. A 0.5A Max 1A Max.
CARRY CURRENT Max. A 1A Max. 2A Max.
SWITCHING CAPACITY  Max. VA 10W/VA Max. 50W/VA Max.
CONTACH RESISTANCE Max. m 150mOhms 150mOhms
LEAD WIRE   1.5mtr PVC, 0.5mm2 1.5mtr PVC, 0.5mm2
REVERSIBLE SWITCH ACTION   NO NO
OPERATING PRESSURE Max. Kgcm2 1.0 1.0
OPERATING TEMPERATURE   Deg °C  -20° + 80° -20° + 80°
MATERIAL BODY Nylon 6, G.F. 15% Nylon 6, G.F. 15%
  FLOAT Polyurethene  Polyurethene
SUITABLE SPECIFIC GRAVITY   0.75 0.75
MOUNTING HOLE DIA   mm 10.5 10.5
MOUNTING   VERTICAL VERTICAL



Features

Lock Nut Mounting

Suitable for water, gasolin, oils etc.

Available either Normally Open, Normally Close, Change Over Contact Form

Application

House hold Equipments such as heaters, humidifiers, overhead water tanks, Water purifiers, Coffee Machines, Medical equipments, food industry equipments.
